Borwein Integrals
Sep 23, 2018
Justin Pearson
Source: https://www.futilitycloset.com/2018/02/02/breakdown-2/
Problem statement
Check out this strange behavior:
This is quite close to π/2:
The next term in the series is a little farther away from π/2:
It only gets worse from there:
What’s going on here?
Analysis

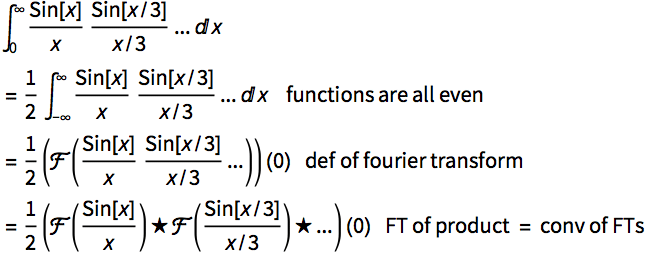

Each integral is a product of scaled sinc functions, which corresponds to a convolution of scaled rect functions in the Fourier domain.
Next we use the fact that the FT of a sinc is a rect. Specifically:

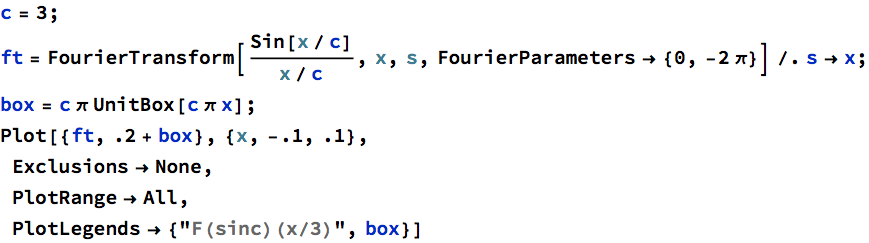

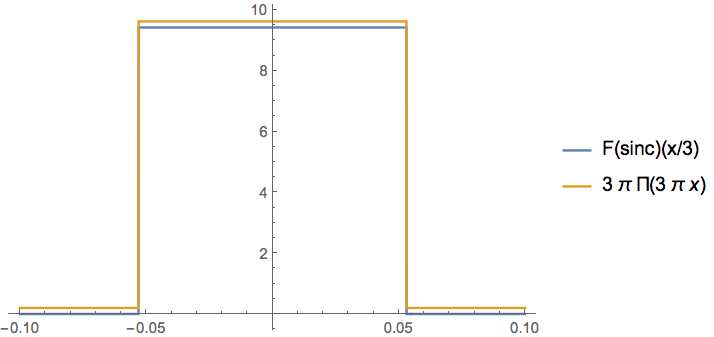

Example:

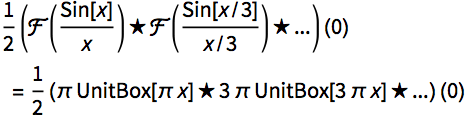

So our integral becomes

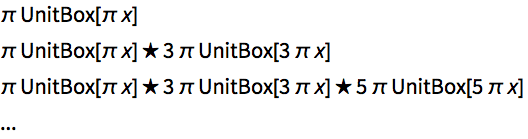

We now study the series of convolutions π UnitBox[π x]★ 3π UnitBox[3π x]★...

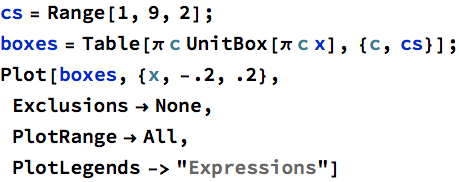

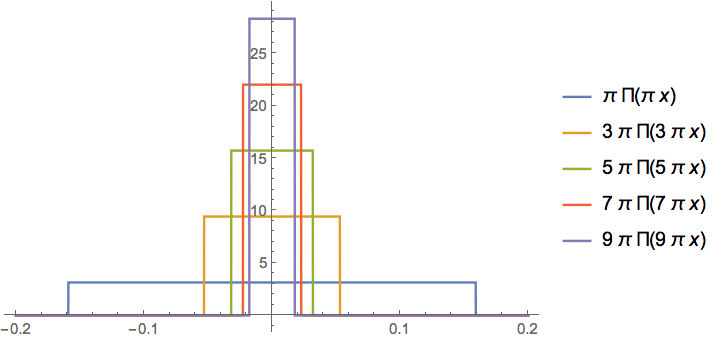

The UnitBoxes:
They all have unit area:
The boxes’ widths follow a simple pattern as they get smaller:
Convolving these boxes together yields a progressively smoother function.

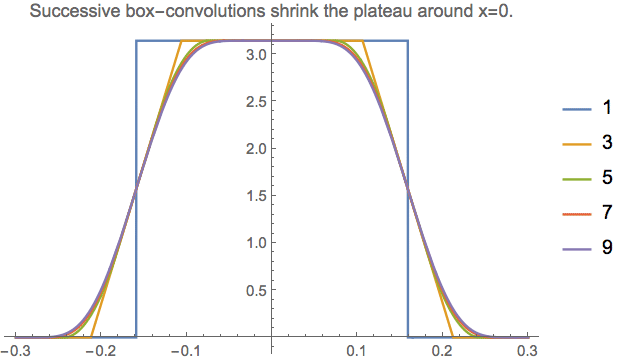

Here is the succession of convolutions

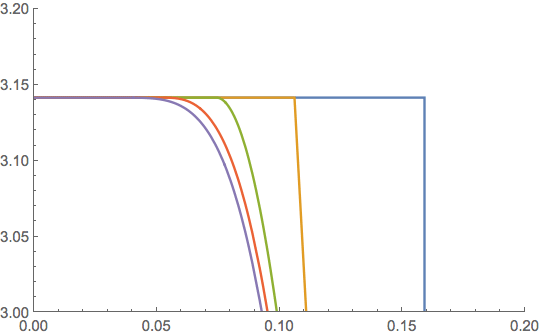

Zoom in:
At 0, each convolution takes the value π:
That’s why the integrals
have value π/2.

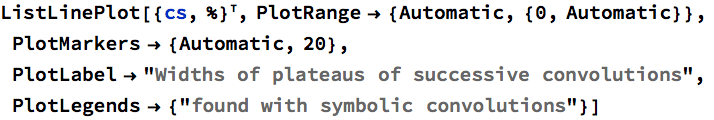

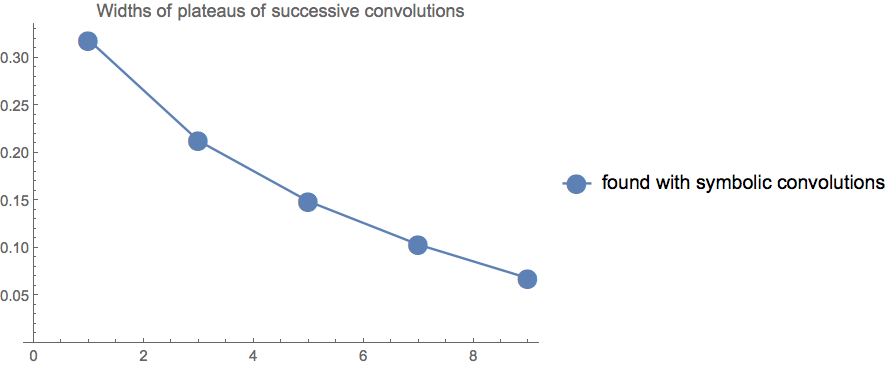

However, successive convolutions’ widths get smaller:
Does this sequence stay positive forever, or does it cross zero?
Brute-force find a pattern:
So it looks like the x/15 term has a “negative” width, indiciating the plateau has been convolved away.

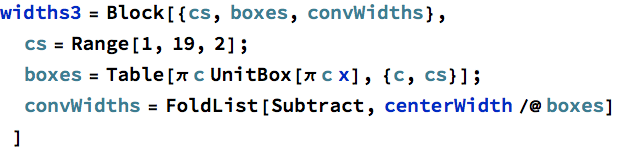

Besides this weird formula with harmonic numbers, there is a simpler way to express the widths of the convolutions. Convolving a box with a smaller box of width c reduces the width of the flat center region by c. So the width of successive box-convolutions can be found by successively subtracting box widths from the width of the original box 1/π:

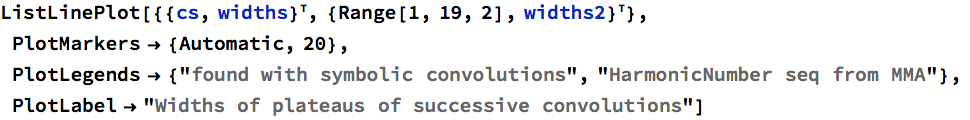

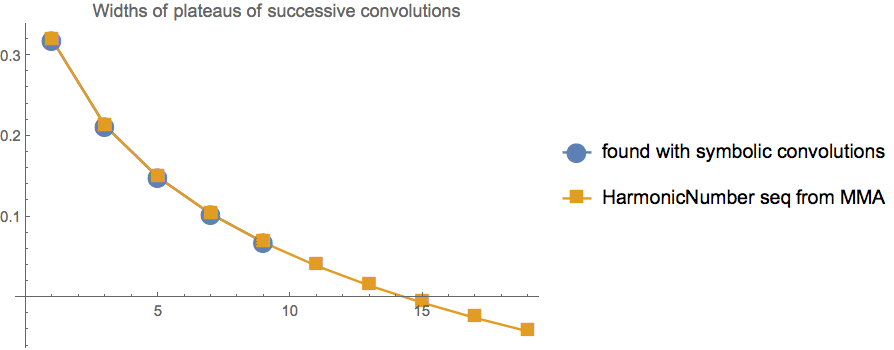

This matches the widths we found with symbolic convolution:
This is good because the closed-form expression of the x/15 convolution is too big for Mathematica.

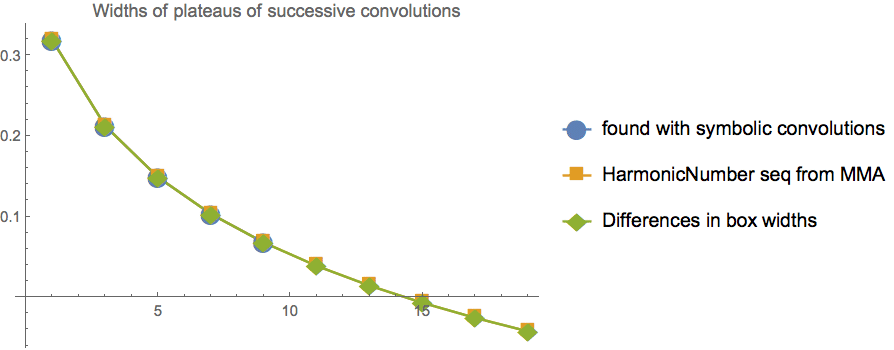

This matches the widths of our symbolic convolutions, as well as our werd formula with harmonic numbers:
The curve goes negative at x=15, meaning the convolutions have eaten up the entire flat center region at the x/15 convolution, so the value of the FT at 0 is less than π/2. I think it would be difficult to figure out how much less that π/2 it is; it’s probably easiest to just perform the infinite integral.
