Enumerating birds in a video

Justin Pearson
2014-10-25

Abstract

We explore computational techniques for enumerating birds in a video file. The video was filmed in November 2011 in Simi Valley, California, and features thousands of crows on their daily evening commute from the city to a large green open space. We determine that the 8-minute video captures roughly 1200 crows.

Since the crows are exiting the frame through the top and left sides, the main idea is to count the crows by counting when they leave the top or left side of the frame.

Footage

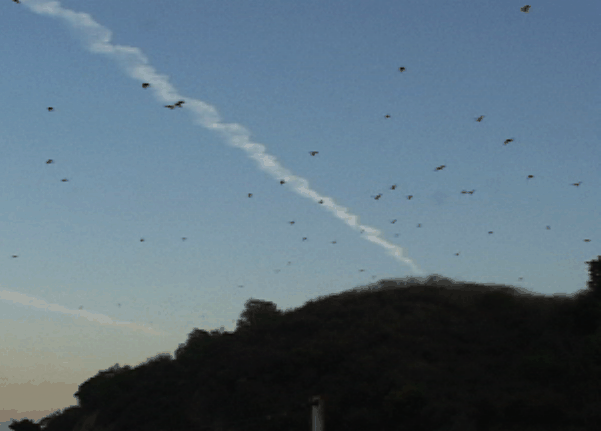

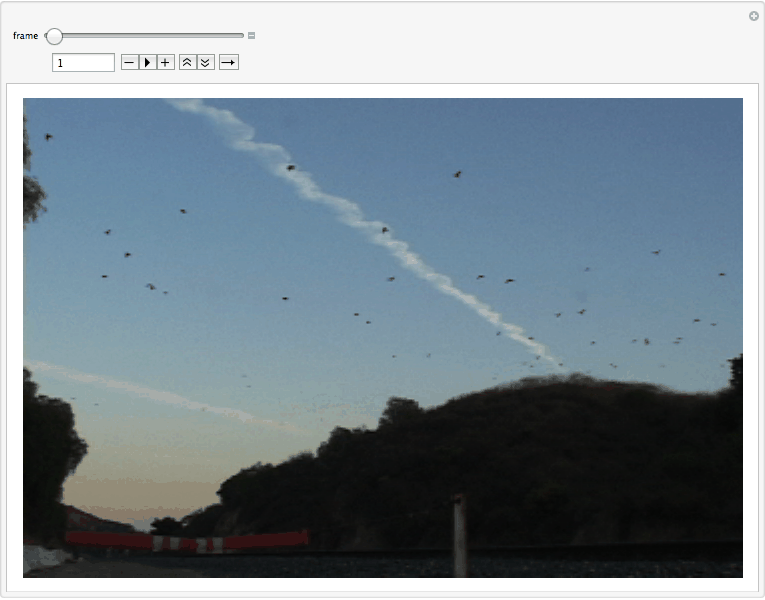

Here’s our footage:

File name	short_clip.avi
File Size (bytes)	12939120
BitDepth	8
ColorSpace	RGB
Duration	3.46667
FrameCount	104
FrameRate	30.
ImageSize	{720,480}
VideoEncoding	DV/DVCPRO - NTSC
{ImageList,100}

Idea 1: View video as 3D Image

If we mask out the crows and stack the frames up to form a 3D image, each crow will trace out a long tube-like shape. Counting the tubes tells us the number of crows in the whole video.

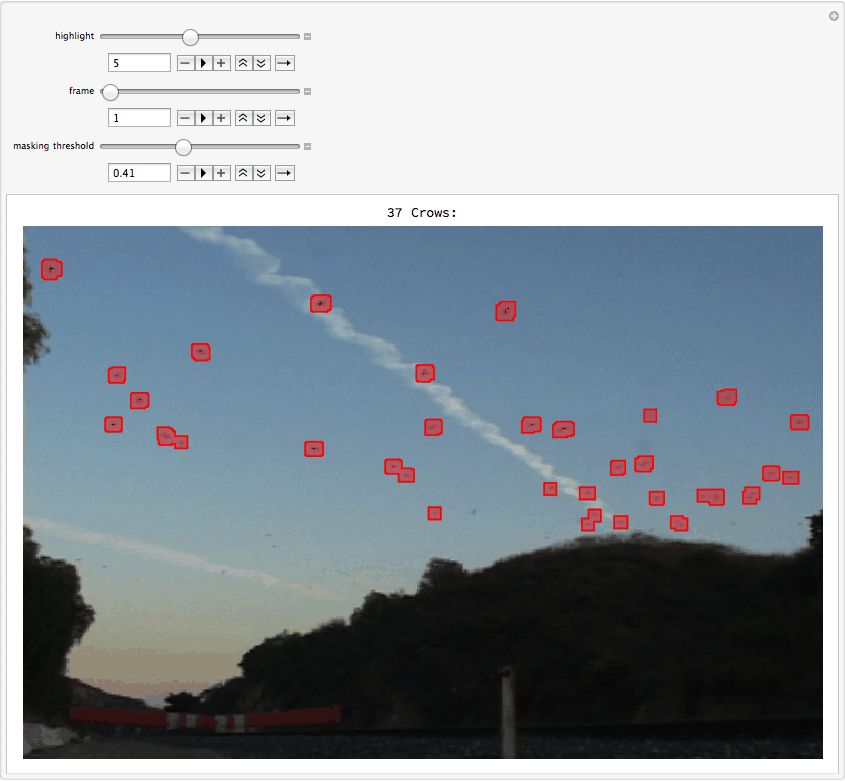

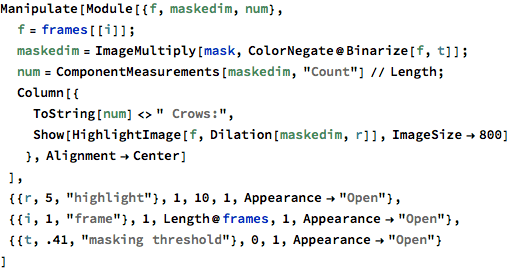

Here’s a good threshold value:

Make & Export 3D image

This takes a long time, so I locked these cells.

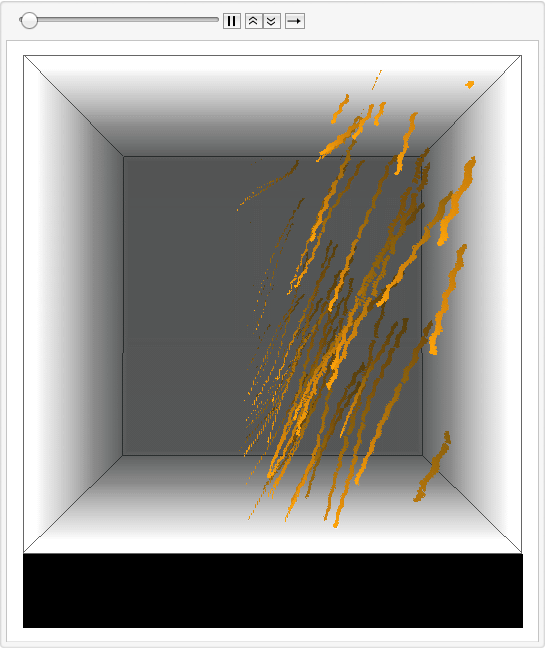

Show 3D image

Idea 2: Count when crows leave the frame

Import the frames as raw pixel values instead of Image[] objects.

The fact that the lefthand side has some dark trees will make things difficult; let’s just crop them out.

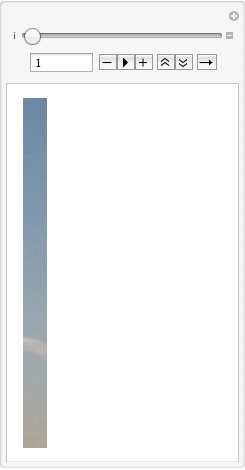

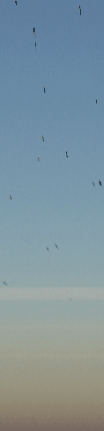

Take vertical column of pixels from each frame

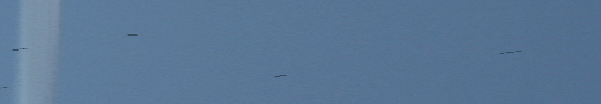

Take horizontal slice of pixels from each frame

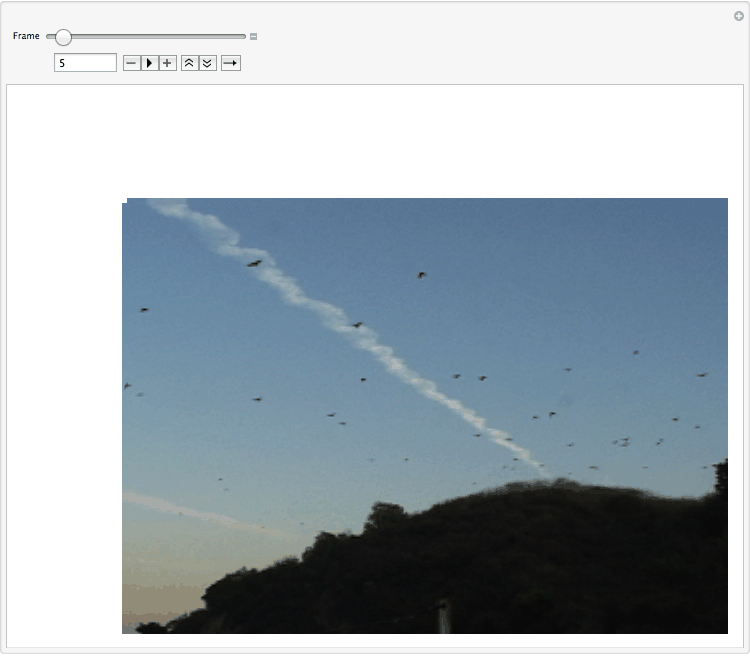

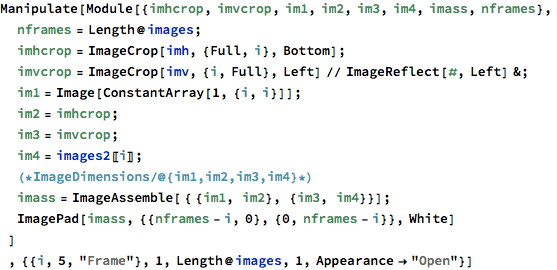

Quick check: Show a video of crows leaving the frame

You can see the crows getting “stuck” when they hit the upper and left edges.

Looks like ~15 leave the RHS and 6 leave the top.

The idea will be to have MMA count the number of crows that leave the left & top sides.

Crows exiting top of frame

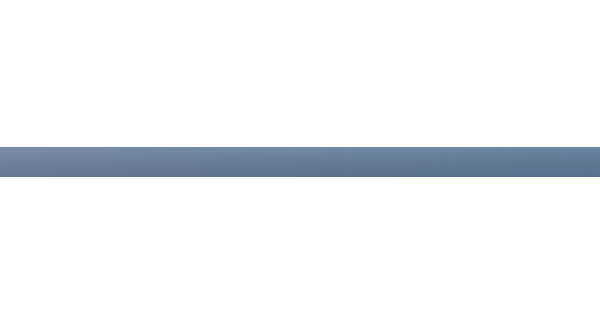

Here’s the top few rows of a 15-minute video of crows. The whole file was too big to import.

File name	horiz_720x24_quicktime_h264.mov
File Size (bytes)	29436035
BitDepth	8
ColorSpace	RGB
Duration	479.479
FrameCount	14370
FrameRate	29.97
ImageSize	{720,24}
VideoEncoding	H.264
{ImageList,100}

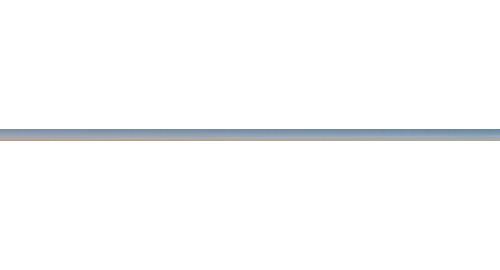

Import video in chunks of 300 frames; extract the top row of pixels from each frame; parallelize this for speed.

Detection via GradientFilter

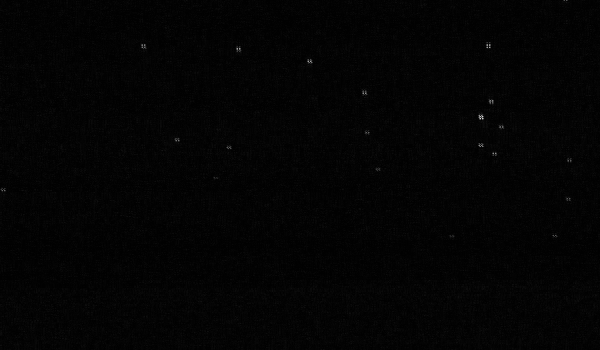

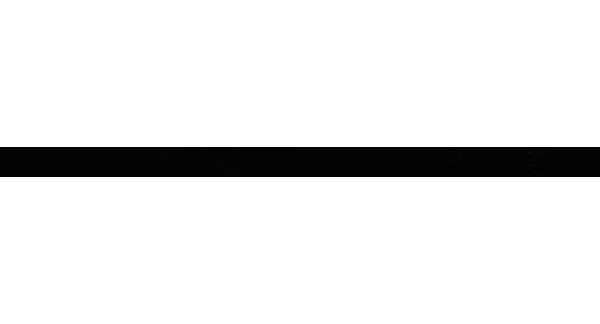

It’s hard to see in this pic, but if you zoom in, black is background and white is crows.

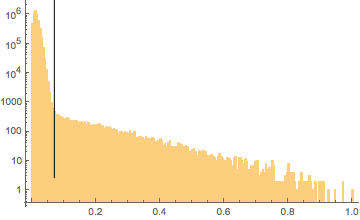

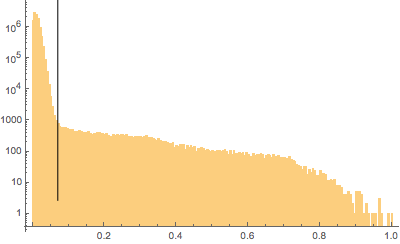

Find a good threshold pixel value to differentiate between “crow” and “background”.

So it looks like a good dividing line between black background and white crows is around 0.07.

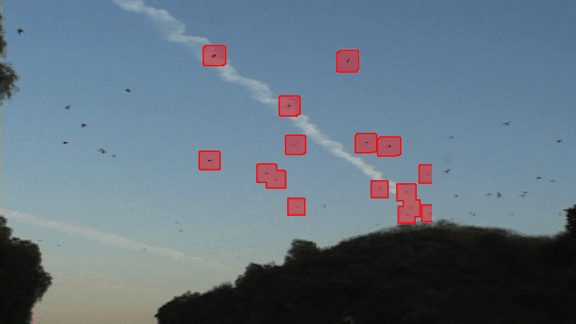

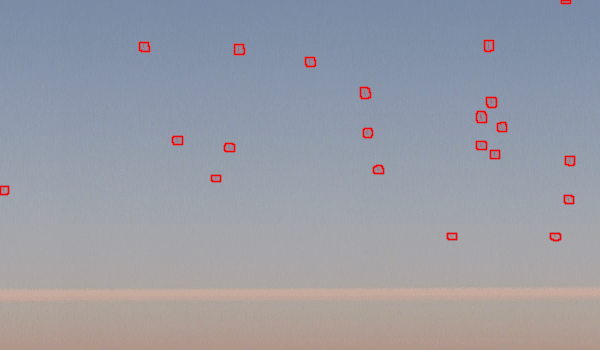

Looks pretty good. Let’s highlight them:

Here’s a zoom-in of the left side of the image:

Hard to see, but the crows are highlighted slightly.

So, how many crows left the top of the frame during this 8-minute video?

Crows exiting left side of frame

Do essentially the same thing, but for the video that’s the left side of the frame.

A long file. Import in pieces.

File name	vert_24x350_quicktime_h264.mov
File Size (bytes)	18630731
BitDepth	8
ColorSpace	RGB
Duration	479.479
FrameCount	14370
FrameRate	29.97
ImageSize	{24,350}
VideoEncoding	H.264
{ImageList,100}
