A program to play “Set”


Justin Pearson
Sep 21, 2017

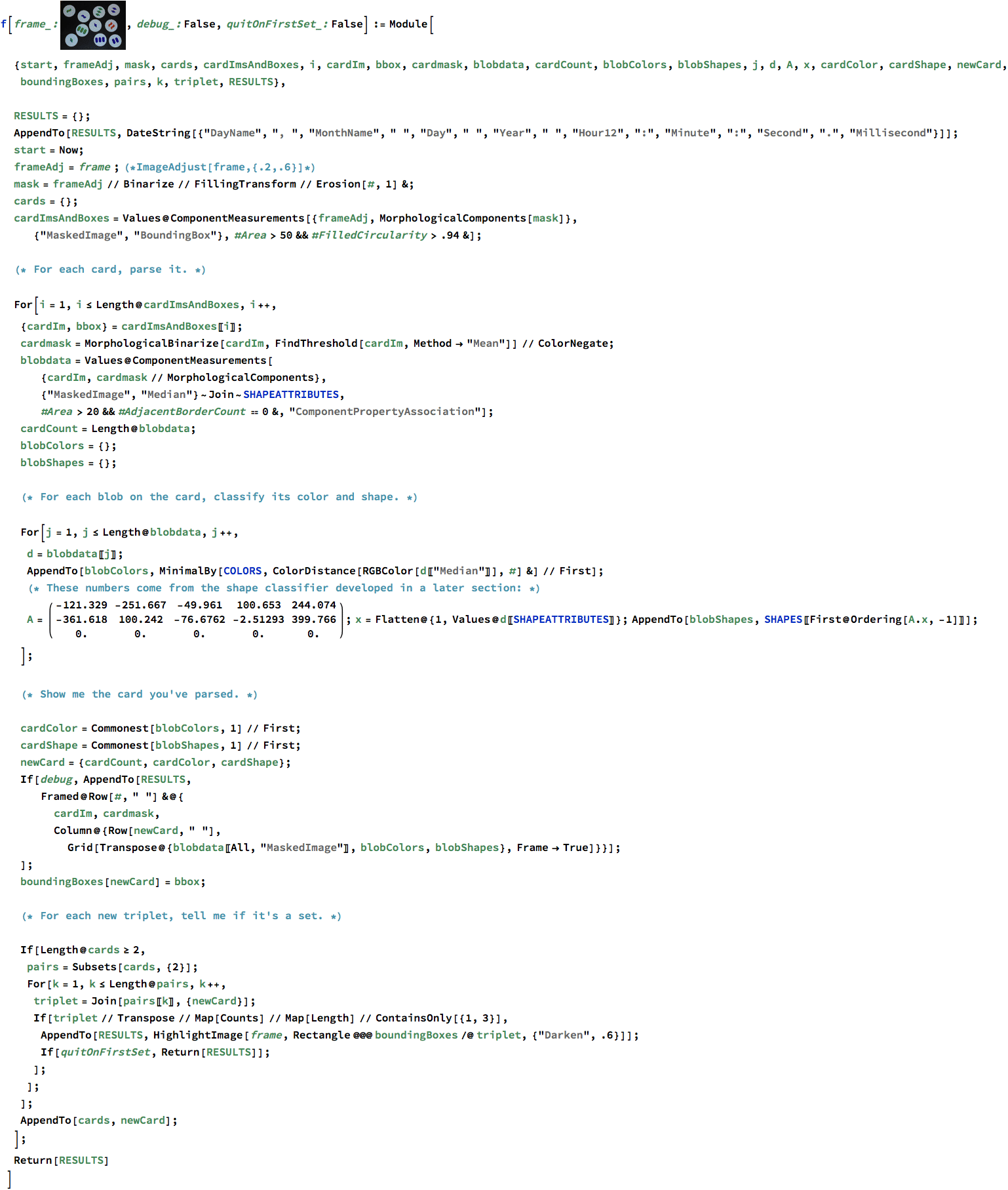

The big function

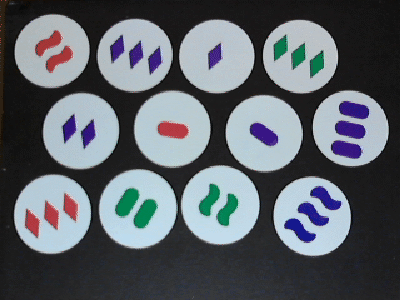

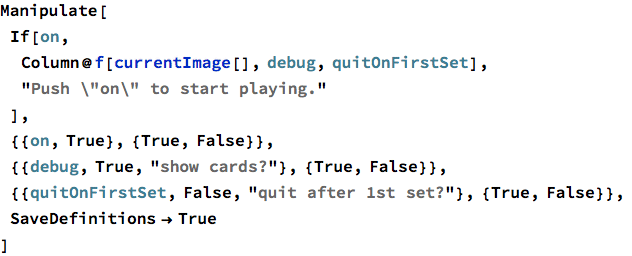

Demo







import 0.393928
parse 0.073856
find sets 0.002175
display 0.413222

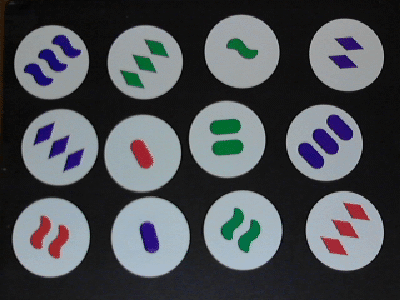

Demo 2







import 0.262394
parse 0.076477
find sets 0.005584
display 0.53886


How it works

Table of contents

1. Import image
2. Parse image
   2a. Select cards from image
   2b. From each card, parse its blobs:
       Count blobs
       Color
       Shape
3. Find Sets
4. Display Sets

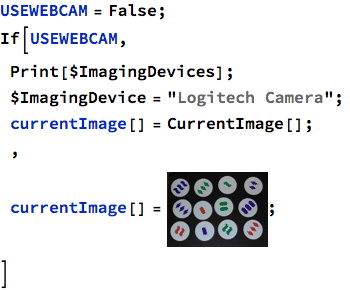

Import Image

We shrink the image to make it run faster.



Parse image

Select cards from image

A Label Matrix for an image is a matrix of non-negative integers the same size as the image, where each integer represents a different blob, and 0 represents the background.

For example, here is the label matrix for an image with two blobs. (We have to negate the color because white means blob and black means background.)



You can use ArrayPlot or Colorize to display a label matrix as a picture where colors represent different integers:





Here is the label matrix for our image.



It is a big matrix, same size as the image:




Use Colorize to see the different regions:



We use the label matrix to indicate regions of interest in an image. We call these regions “components”.

The ComponentMeasurements function provides information about an image's components.

For each component, we retrieve its picture (“MaskedImage”) and the coordinates of the corners of its bounding box (“BoundingBox”).

The 3rd argument is a function which serves to keep only large and circular components.
The 4th argument specifies how we want the output formatted.
The function is quite fast.



From each card, parse its blobs

Next we parse the blobs out of each card and look at the things important for Set:
(1) how many blobs
(2) what color are the blobs
(3) what shape are the blobs

Here is an example card:



For each card we make an association (dictionary) to contain information about it:



We compute a Label Matrix for this card to analyze its blobs.

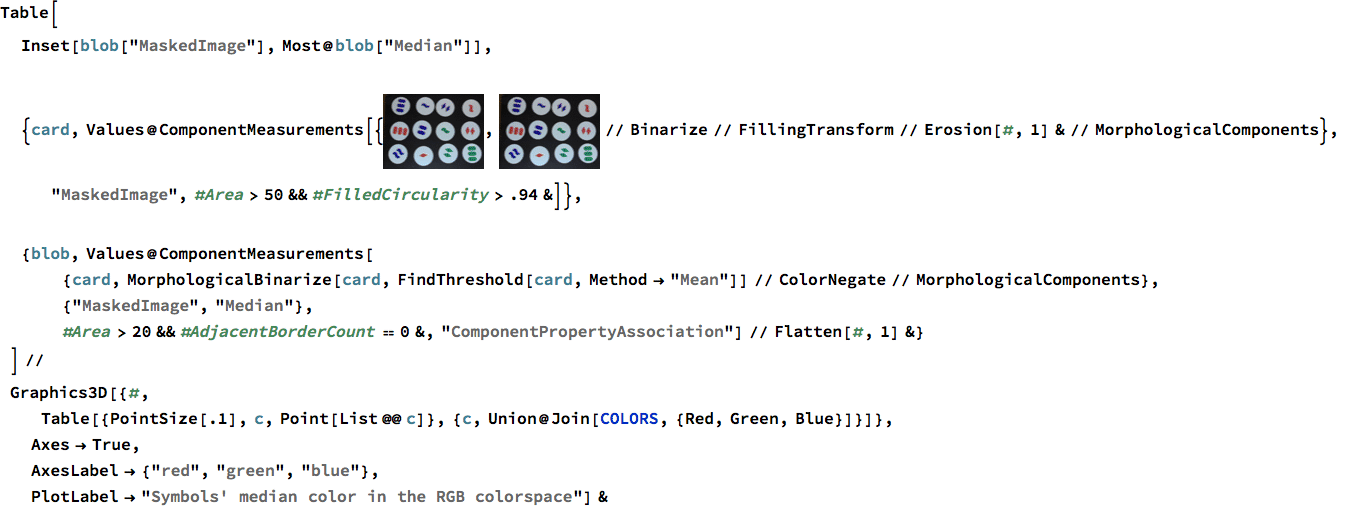

For each component (symbol on the card), we compute:
(a) its picture (“MaskedImage”),
(b) its median color (“Median”),
(c) the fraction of the component that covers its bounding disk (“BoundingDiskCoverage”).

Property (c) will be useful for figuring out the shape; fraction near 1 means very circular, fraction near 0 means very spiky.

We're careful to only consider components that don't touch a border, because we don't want to include the components on the 4 edges of the image.



Count blobs

We add to our dictionary the number of blobs:



Color

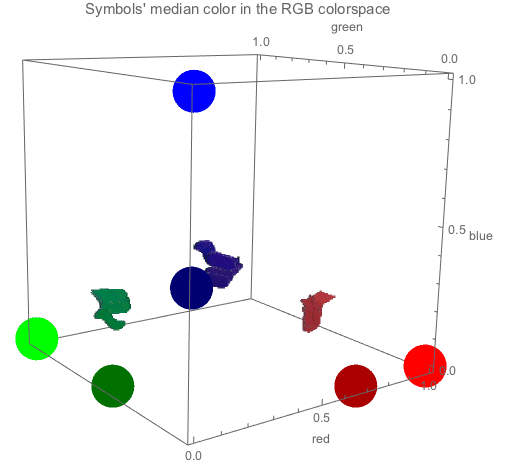

For each blob on the card, classify its color as Red, Dark Green, or Purple -- whichever its median color is closest to.
Then pick the commonest color over all the blobs as the color of the whole card. (Essentially allow the blobs to “vote” on the color.)






Shape

It turns out the bounding-disk coverage is a good predictor of a blob’s shape.
With a little trial and error, I found some thresholds.
Again, we have them vote on which shape.

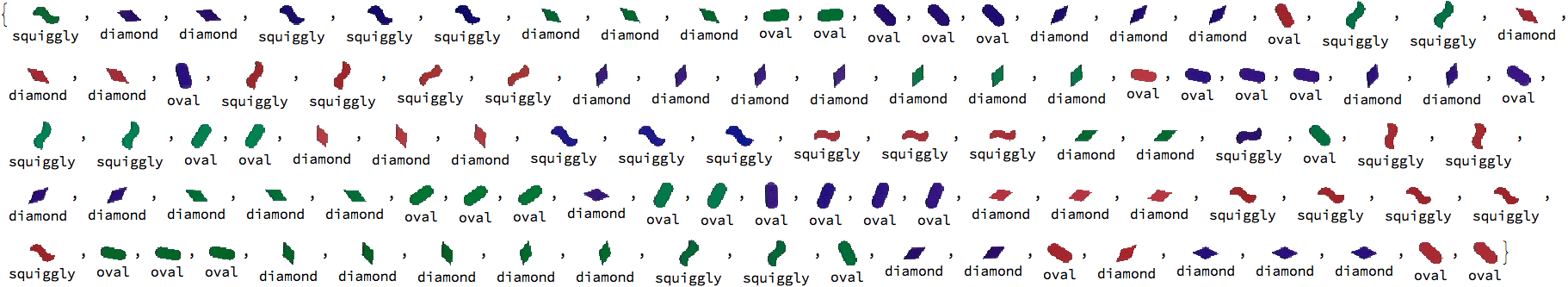

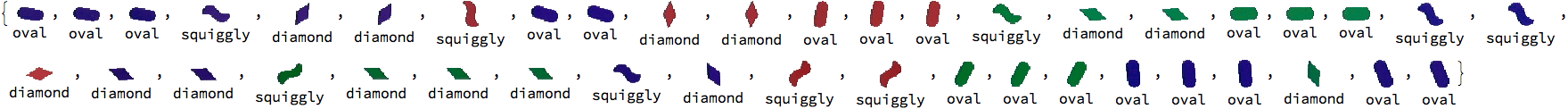

Blobs’ BoundingDiskCoverage

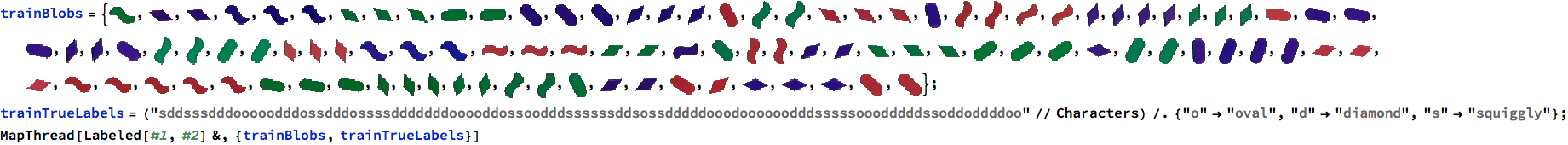

Save the pictures of the blobs and the BoundingDiskCoverage, for later analysis.

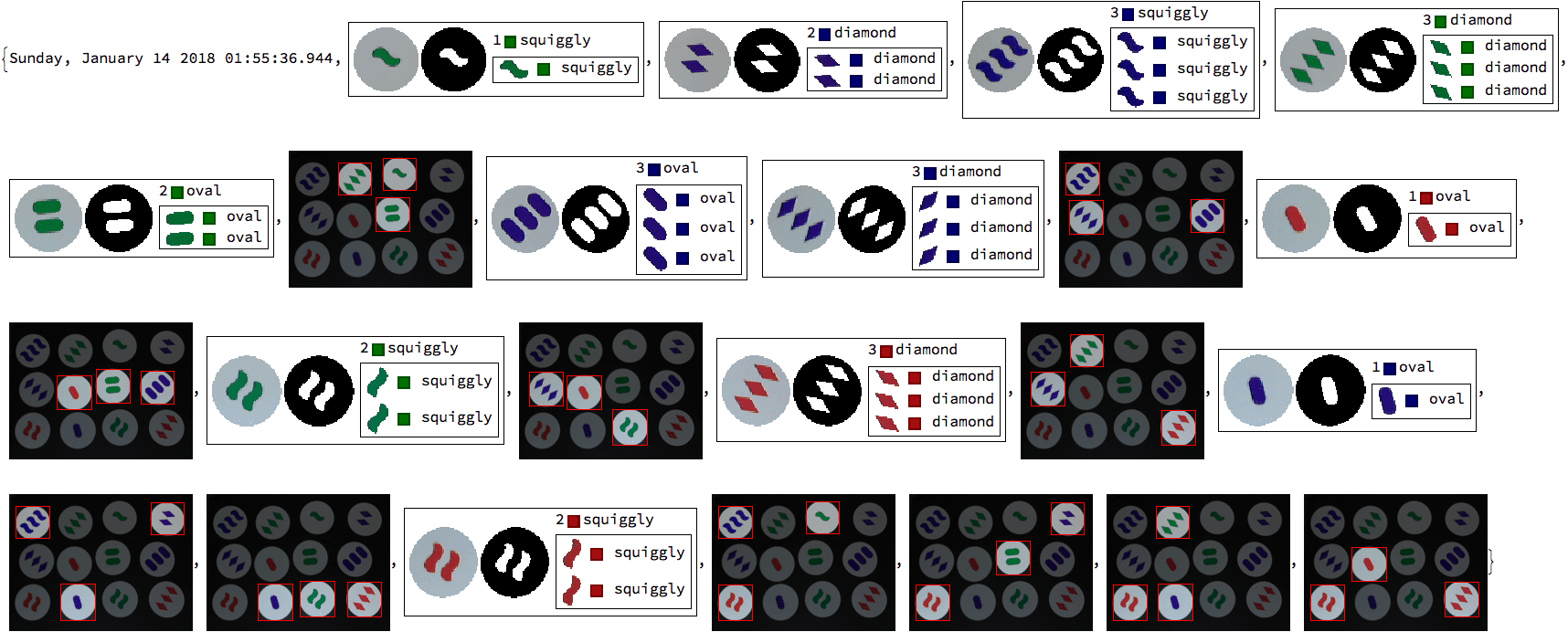

End result of analyzing one card



Analyze all cards

Roll this up and run it on all cards:


It’s quite fast:



Here’s the data we calculated for each card:


card count color shape box blobCoverages
index_64.gif 3 index_65.gif oval {{258.,263.},{325.,330.}} index_66.gif
index_67.gif 3 index_68.gif squiggly {{168.,263.},{234.,329.}} index_69.gif
index_70.gif 2 index_71.gif oval {{348.,260.},{416.,328.}} index_72.gif
index_73.gif 2 index_74.gif oval {{77.,255.},{141.,320.}} index_75.gif
index_76.gif 2 index_77.gif diamond {{165.,171.},{230.,237.}} index_78.gif
index_79.gif 2 index_80.gif squiggly {{78.,170.},{141.,235.}} index_81.gif
index_82.gif 3 index_83.gif diamond {{263.,168.},{330.,234.}} index_84.gif
index_85.gif 3 index_86.gif oval {{353.,161.},{421.,228.}} index_87.gif
index_88.gif 1 index_89.gif oval {{167.,81.},{232.,146.}} index_90.gif
index_91.gif 3 index_92.gif oval {{80.,75.},{143.,140.}} index_93.gif
index_94.gif 1 index_95.gif squiggly {{260.,72.},{326.,138.}} index_96.gif
index_97.gif 1 index_98.gif diamond {{353.,60.},{421.,127.}} index_99.gif

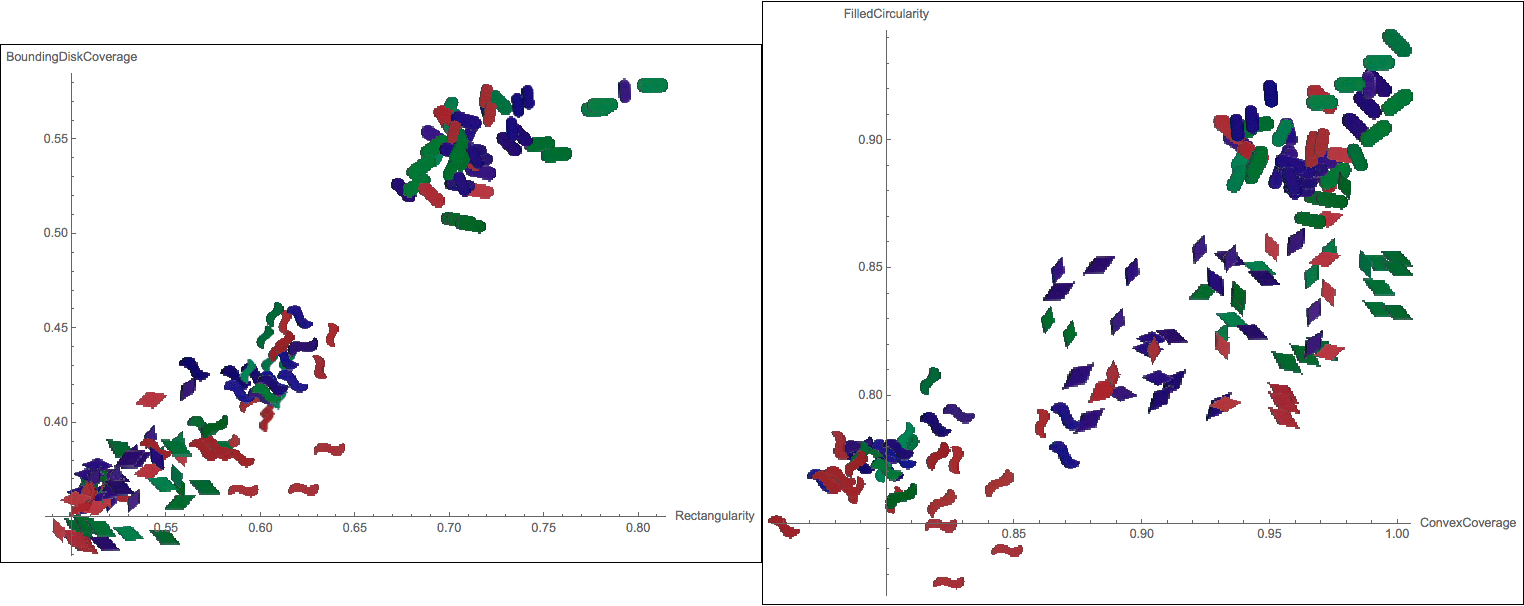

Real quick, let’s analyze how well “BoundingDiskCoverage” can predict shape.
You can see in the graph that a BoundingDiskCoverage of 0.4 differentiates well between “diamond” and “squiggly”, and 0.5 differentiates well between “squiggly” and “oval”, although one green oval is mis-classified due to a brightness problem.


Graphics:\"BoundingDiskCoverage\" predicts shape well.

Find Sets

Here are 3 cards. Are they a Set?

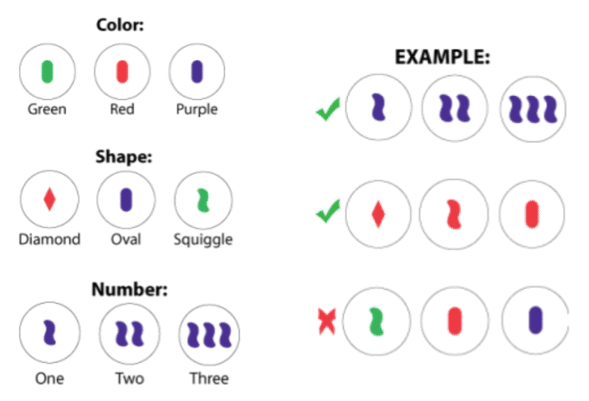

This triplet is a Set if, for each category of ‘count’, ‘color’, ‘shape’, they all share the same value, or all have different values.

Group by value:



Tally up each category:



For each category, there should be either 3 entries or just 1.



So it’s not a set.

Roll it up into a function:

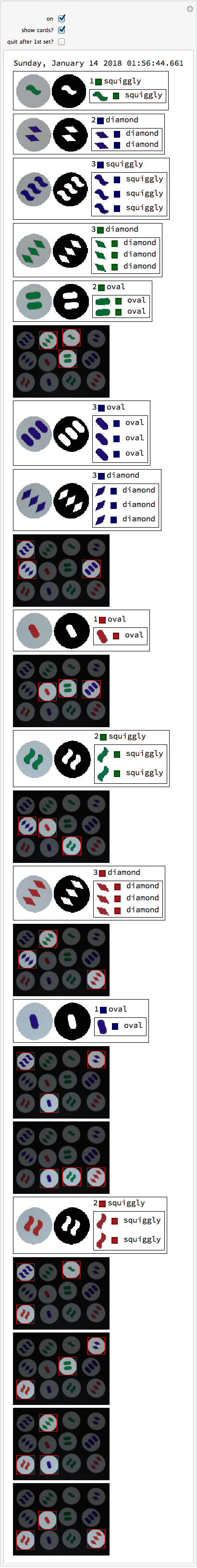

Find all sets:

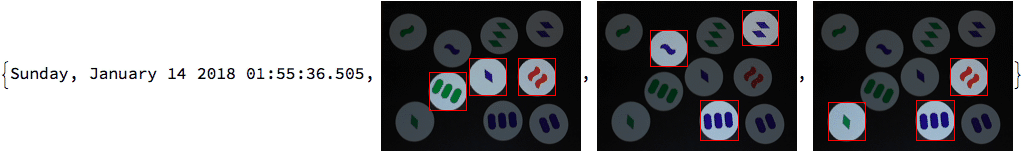

Display Sets

Use the bounding boxes of each set’s cards to highlight each set:



Created with the Wolfram Language
